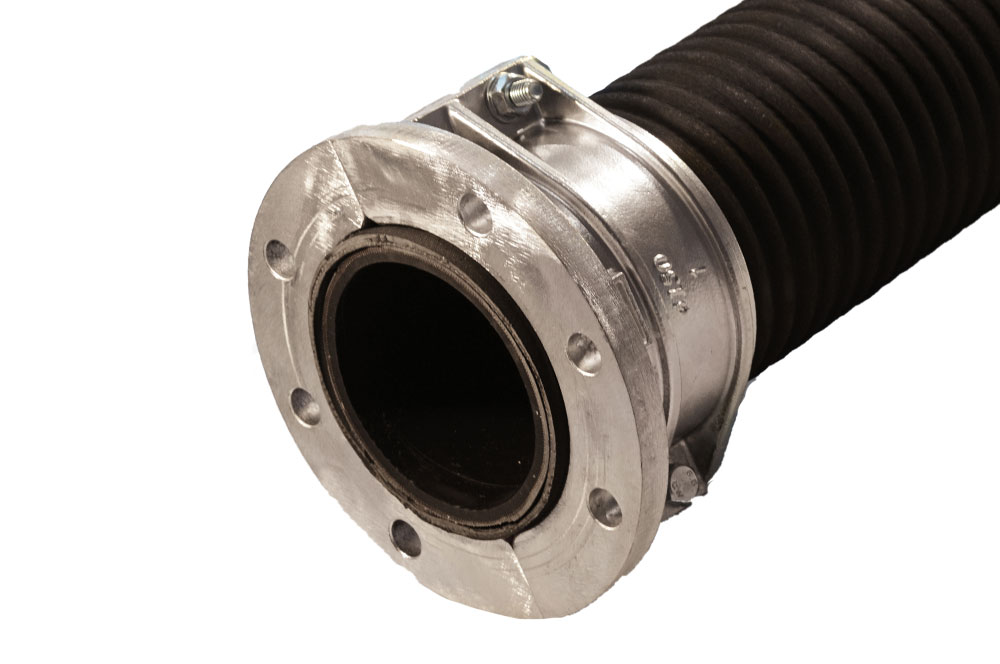

Tubo Abraflan

Tubo Abraflan

INNER TUBE: Black, smooth, antistatic NR/SBR rubber which withstands the pas- sage of abrasive materials.

REINFORCEMENT: High strenght synthetic cord, steel helix wire, and antistatic copper wire.

COVER: Black, corrugated (wrapped finish), EPDM rubber, weathering and ozone resistant.

TEMPERATURE RANGE: -40° +70°C

Abraflan
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
51512”8310150304502503,80
80803”1/811210150304504005,40
1001004”13210150304505006,80
1251255”15710150304506508,40
1501506”182101503045075011,50
2002008”2331015030450175015,30
25025010”2851015030450200019,90
30030012”340,51015030450270027,16

APPLICATION

Hose for crossing of high abrasive products. Note: Semi-fitting external shell.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

Rivestimenti
