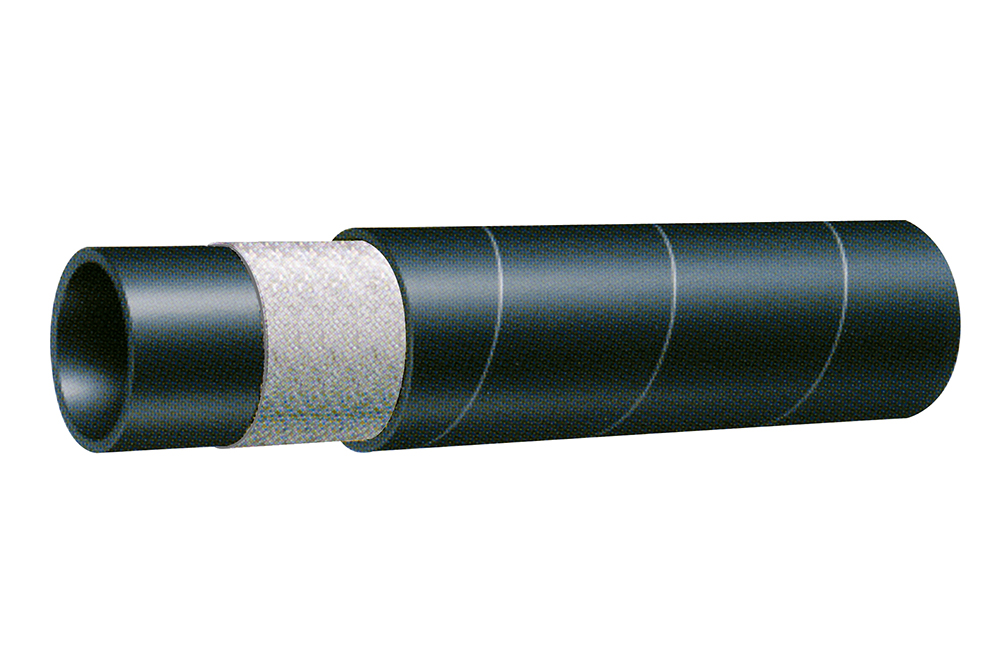

Steam 164

Steam 164

Inner tube: Black, smooth, antistatic EPDM rubber, resistant to saturated steam.

Reinforcement: High strength synthetic cord.

Cover: Black, smooth (wrapped fi nish), EPDM rubber, resistent to high temperatures, weathering and ozone.

Temperature range: -40° +165°

Vapore164 pag.91
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
10103/8”20690609000,24
13131/2”23690609000,29
16165/8”27690609000,39
19193/4”29690609000,38
25251”35690609000,48
32321”1/446,5690609000,89
38381”1/254690609001,19
51512”68690609001,67

APPLICATION

Softwall steam hose, textile reinforced, recommended for use with saturated steam at a maximum working pressure of 6 bar (87 psi). For longer life drain after use.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

Rivestimenti
