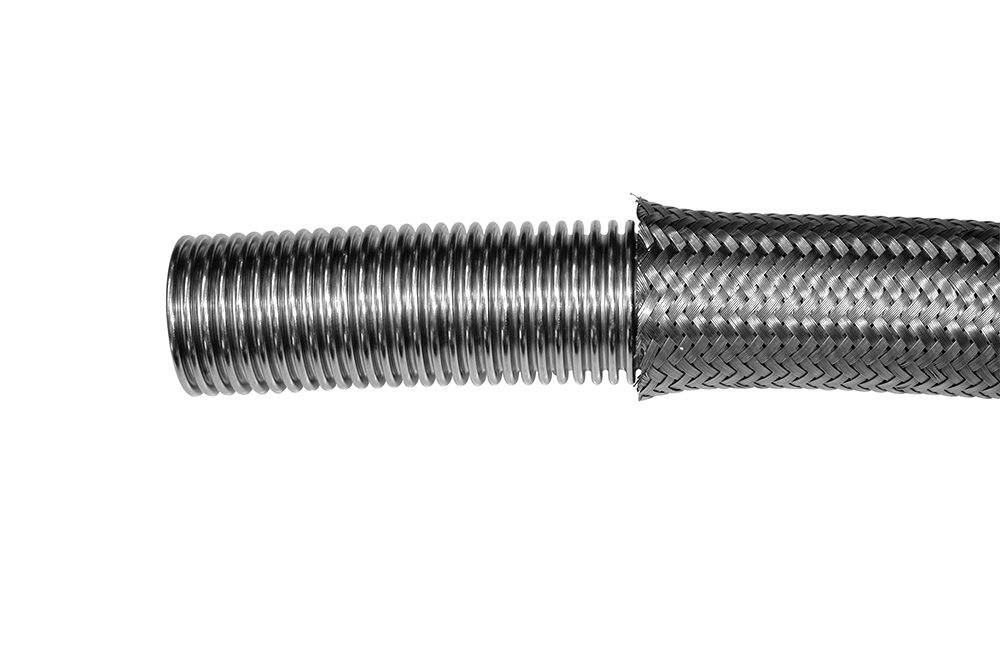

Single Braid Silver

Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Pressione di esercizio
Working Pressure

#colspan#

Pressione di collaudo
Test Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio di curvatura statico
Static Bend Radius

Raggio di curvatura dinamico
Dynamic Bend Radius


DN

#colspan#

#colspan#

#colspan#

#colspan#

mmmminchbarpsibarpsibarpsimmmm
661/415422332303335616893225100
10103/81051522,51572276,5420609040150
12121/28812761321914352510450200
16165/8731058,51091580,5292423450200
20203/464928961392256371270200
25251”50725751087,5200290090200
32321”1/44260963913,51682436110250
40401”1/232464486961281856130250
50502”31449,5466671241798175350
65652”1/22637739565,51041508200410
80803”1826127391,5721044205450
1001004”162322434864928230560
1251255”121801827048700280660
1501506”121801827048700320815
2002008”812012180324704351015

The nominal pressure (PN) indicated in the tables is the maximum permissible operating temperature at room temperature in a static position.

Temperatura °C321316L304
20111
500,920,890,92
1000,860,80,83
1500,830,750,75
2000,790,690,68
2500,740,650,63
3000,710,620,59
3500,680,60,56
4000,670,580,54
4500,660,560,53
5000,650,550,52
5500,560,470,52
