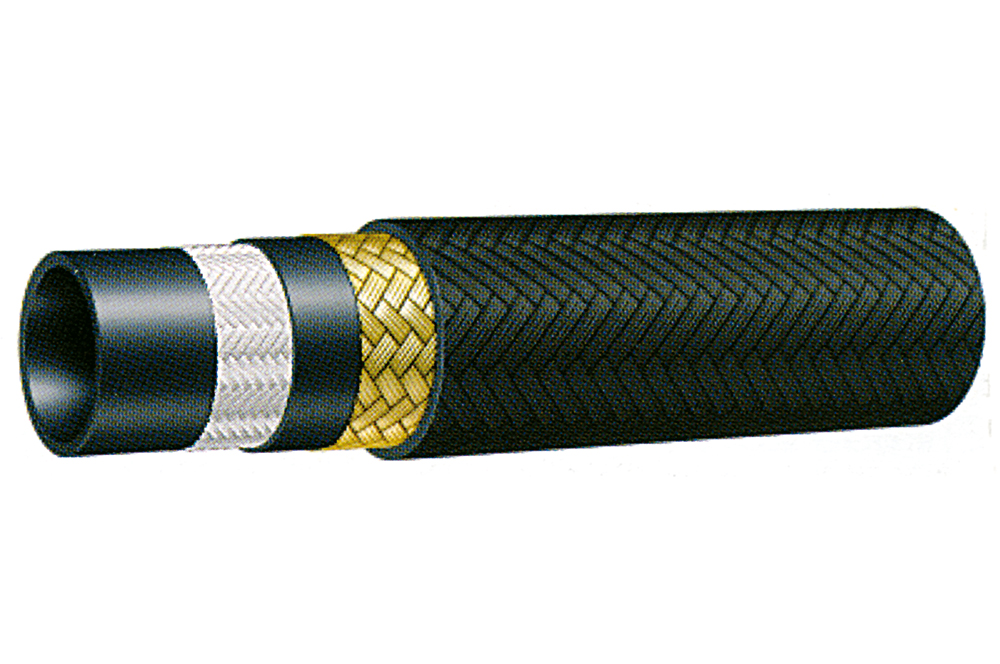

SAE 100 R5

SAE 100 R5

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 1 high tensile steel wire braid.

Cover: High tensile textile wire braid.

Temperature range: -40° +100° with peak of +150°

PDF Technical Sheet
PDF Corrosion Resistance
Sae100r5 pag.70
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#
mmmminchmmbarpsibarpsimmKg/mt
553/16”13,22207300083012000760,230
661/4”14,8207300083012000860,270
885/16”17,3155225062090001020,340
101013/22”19,5138200055080001170,450
13131/2”23,4121175048070001400,560
16165/8”27,4103150041060001650,670
22227/8”31,45580022032001870,690
29291”1/838,14362517025002290,840
35351”3/844,53450014020002671,060
46461”13/1656,42435010014003371,350

APPLICATION

Hydraulic mineral and “biological” oils, polyglycol base oils, water, oil/water emulsions.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

Rivestimenti
