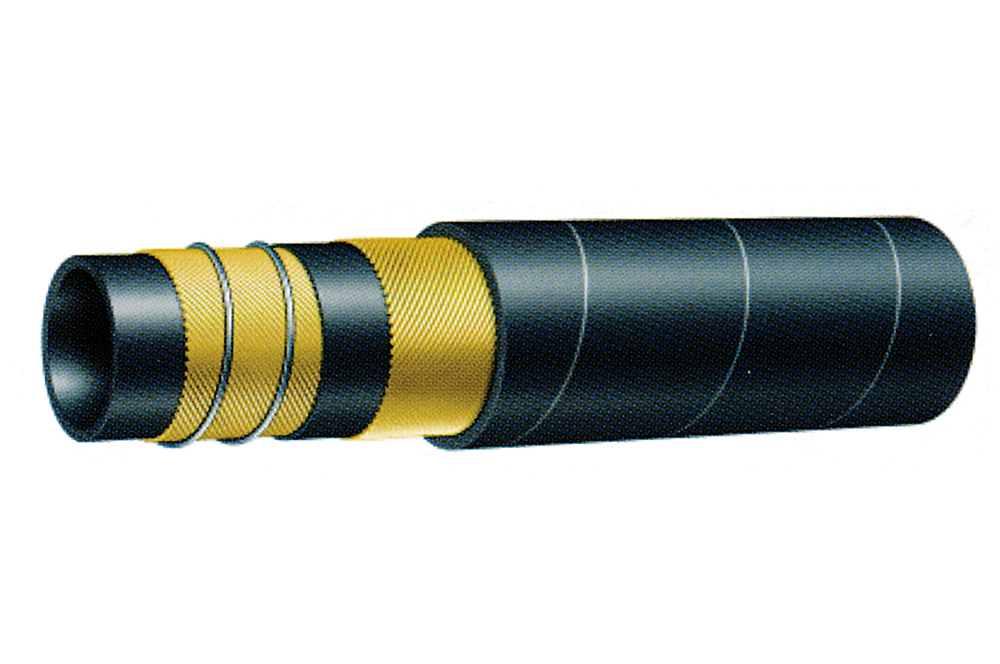

SAE 100 R4

SAE 100 R4

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 1 high tensile textile wire braid and helix wide.

Cover: Abrasion, weather, ozone and oil resistant synthetic rubber.

Temperature range: -40° +100°C

Sae100r4 pag.89
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
16155/8"27213158412601120.57
19193/4”29.5213158416201200.59
25251”35.5172556810201450.74
32321”1/442.514210568401950.90
38381”1/24910.5158426302281.11
40401”1/25110150406002401.16
51512”627105284203001.43
60602”3/872.5460162403352.12
64642”1/276460162403552.18
76763”88460162404552.60
1021024”1152.538121806103.84

APPLICATION

Hydraulic mineral and “biological” oils, polyglycol base oils, water, oil/water emulsions.

AVAILABLE COVERINGS:

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

Rivestimenti
