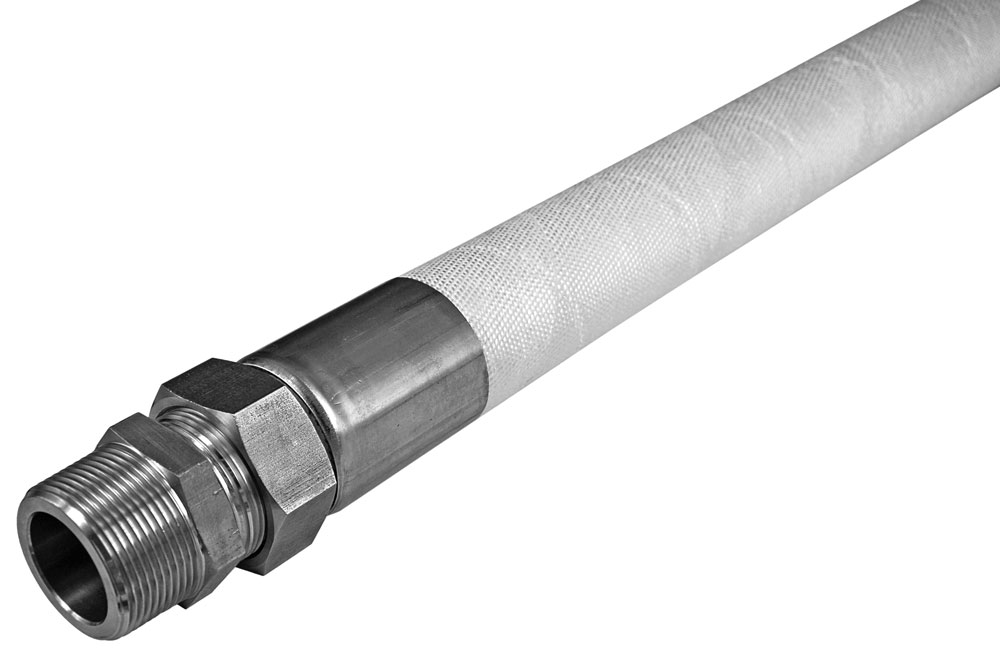

FORNO 25

Inner Tube: White, smooth, EPDM rubber. The inner tube compound has a linear electric resistance value higher than 1 x 109, according to ISO 8031 Norm.

Reinforcement: High strength synthetic cord.

Cover: Covered with fibre glass, vulcanized, heat resistant.

Temperature range: -40° +120° The fibre glass cover resists radiant heat up to +530°C.

Forno 25
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
10103/8”2020290608700,31
13131/2”2320290608700,34
16165/8”2720290608700,46
19193/4”31,520290608700,60
25251”3920290608700,90
32321”1/44420290608700,85
38381”1/25820290608701,89
40401”1/25520290608701,96
50502”7020290608702,26
51512”6520290608702,14
60602”1/28120290608702,31
63,563,52”1/28020290608702,84
75753”9320290608703,30
76763”9620290608703,40
1001004”12020290608703,85
1251275”15220290608703,96
1501506”17020290608704,20

* Diameters available on request.

APPLICATION

Softwall hose for discharge of cooling water in steel mills, foundries, glassworks, and in all cases where a rubber hose is working close to sources of heat. Resistant against splashes of white hot metal.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
