EN 856 R12 – SAE 100 R12

EN 856 R12 – SAE 100 R12

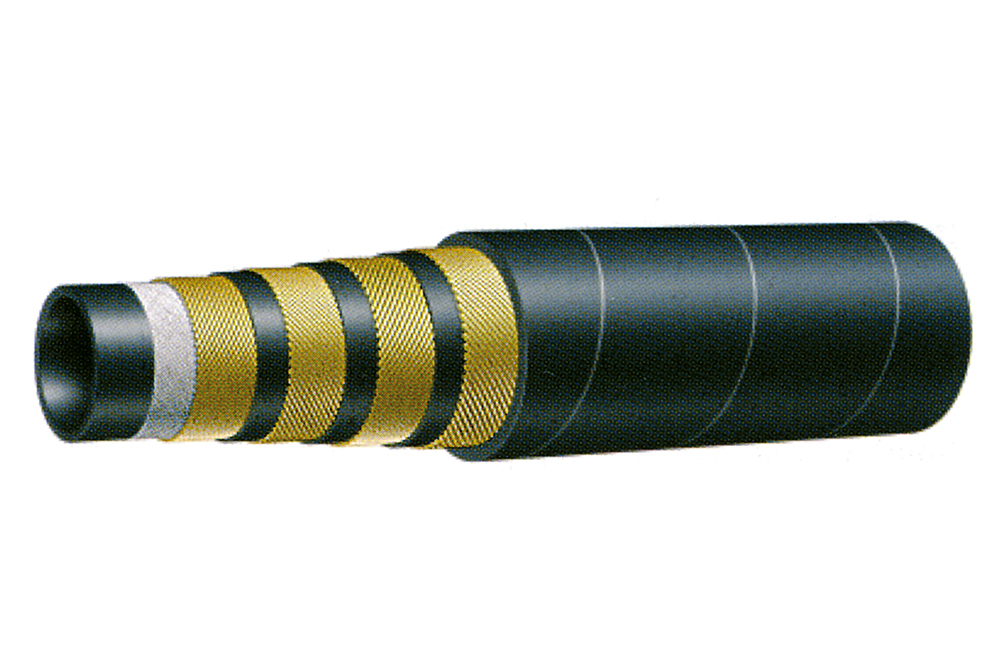

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 4 high tensile steel spirals.

Cover: Abrasion, weather, ozone and oil resistant synthetic rubber.

Temperature range: -40° +100° with peak of +125°

En 856 r12 pag.74
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
109,53/8”20,028040001200160001300,640
1212,81/2”23,528040001120160001800,770
16165/8”27,228040001120160002001,100
19193/4”30,428040001120160002401,210
2525,81”37,628040001120160003001,850
3131,81”1/445,92103000840120004202,350
3838,11”1/253,51752500700100005003,250
5150,82”66,71752500700100006304,450

APPLICATION

Hydraulic mineral and “biological” oils, polyglycol base oils, water, oil/water emulsions.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
