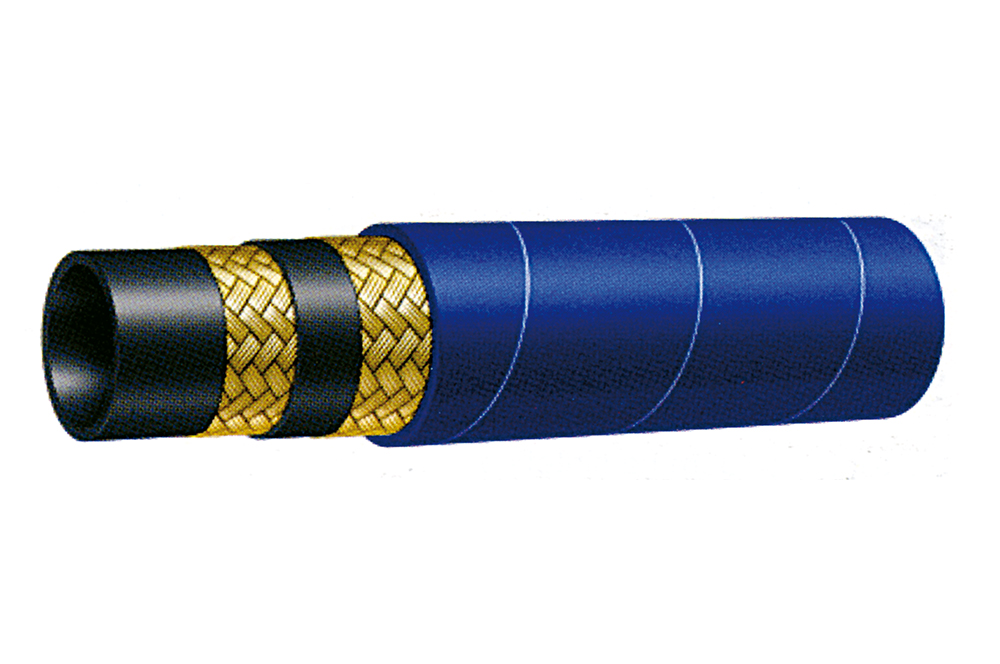

EN 853 2SN – SAE 100 R2 AT Vesuvio

Vesuvio 2

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 1 high tensile steel wire braid.

Cover: Abrasion, weather, ozone, oil resistant and high temperature synthetic rubber.

Temperature range: -40° + 135° with peak of + 150°

En 8532 sn pag.65
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
661/4”15,040058001600232001000,360
10103/8”19,133048001320192001250,510
13131/2”22,228040001120160001750,640
16165/8”25,425036301000145202000,740
19193/4”29,32153120860124802400,910
25251”38,1165240066096003001,320
32321”1/448,3125182050072804201,930
38381”1/254,690131036052405002,410
5151267,480116032046406302,960

APPLICATION

Hydraulic mineral and “biological” oils, polyglycol base oils, water, oil/water emulsions.

NOTE: for medium-hight pressure lines at very hight temperature

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
