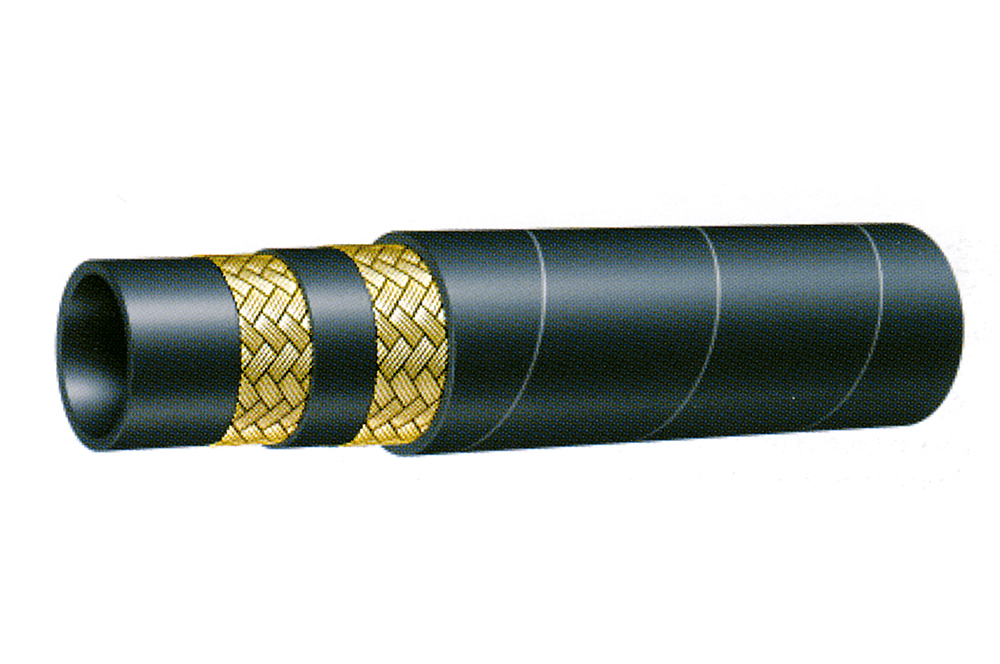

EN 853 2SN – SAE 100 R2 AT

EN 853 2SN – SAE 100 R2 AT

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 2 high tensile steel wire braids.

Cover: Abrasion, weather, ozone and oil resistant synthetic rubber.

Temperature range: -40° + 100° with peak of + 125°

En 8572 sc pag.67
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

#colspan#

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

#colspan#

Pressione di scoppio
Burst Pressure

#colspan#

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

#colspan#

#colspan#

#colspan#

mmmminchmmbarpsibarpsimmKg/mt
54,83/16”13,14155920166023880900,300
66,41/4”14,640058001600232001000,355
87,95/16”16,335050001400200001150,420
109,53/8”18,733048001320192001300,520
1212,81/2”21,827540001100160001800,610
16165/8”25,025036301000149202000,720
19193/4”29,02153120860124802400,945
2525,81”36,9165240066096003000,131
3131,81”1/446,7125182050072804201,900
3838,11”1/253,290132036052405002,250
5150,82”65,980116032046406303,100
64642”1/28370100028040007603,960
76763”965580022032009004,960

APPLICATION

Hydraulic mineral and “biological” oils, polyglycol base oils, water, oil/water emulsions.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
