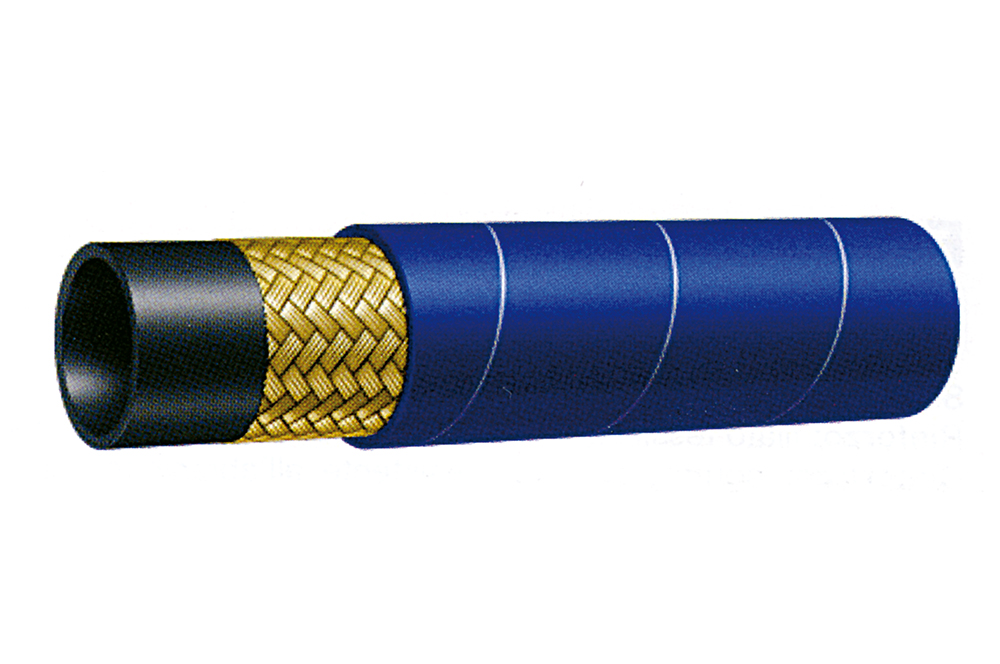

EN 853 1SN – SAE 100 R1 AT Vesuvio

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 1 high tensile steel wire braid.

Cover: Abrasion, weather, ozone, oil resistant and high temperature synthetic rubber.

Temperature: – 40° + 135° with peak of + 150°


Diametro nominale Nominal Bore	Diametro interno Inside diameter			Diametro esterno Over cover diameter	Pressione di esercizio Working Pressure			Pressione di scoppio Burst Pressure		Raggio minimo di curvatura Minimum Bend Radius	Peso unitario Unit Weight
	DN
mm	mm	inch	mm	bar	psi	bar	psi	mm	Kg/mt
6	6	1/4”	13,4	225	3270	900	13080	100	0,220
10	10	3/8”	17,4	180	2610	720	10460	130	0,320
13	13	1/2”	20,6	160	2320	640	9280	180	0,420
16	16	5/8”	23,7	130	1890	520	7560	200	0,510
19	19	3/4”	27,7	105	1530	420	6120	240	0,610
25	25	1”	35,6	88	1280	350	5120	300	0,930
32	32	1”1/4	43,5	63	920	250	3680	420	1,290
38	38	1”1/2	50,6	50	730	200	2920	500	1,480
50	50	2”	62,8	40	584	160	2330	630	2,200
